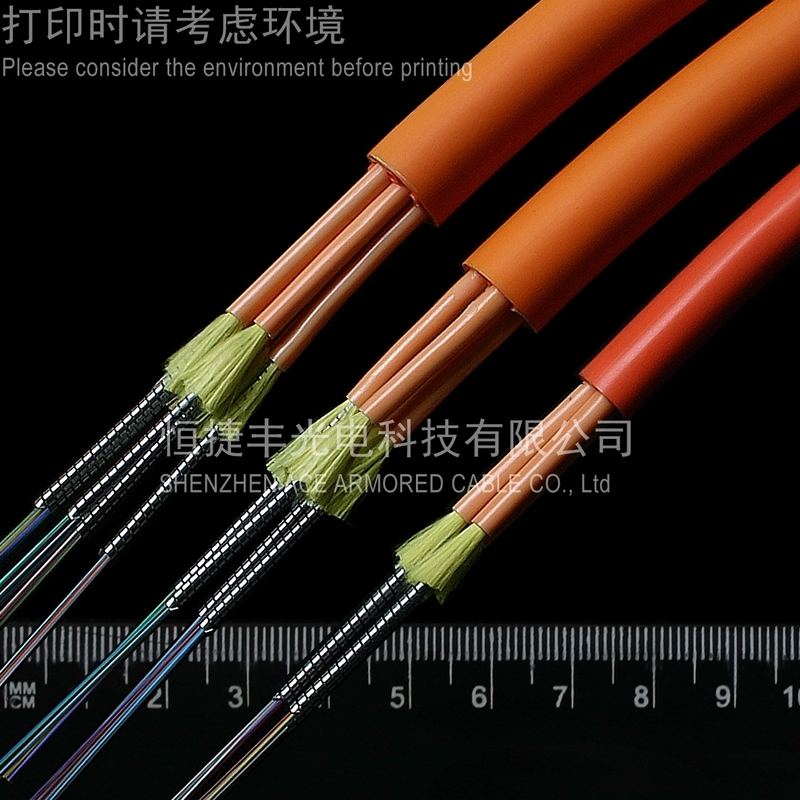

Multi-tube bundle armored cable

1、Profile   View



                                                         (cross-section)

2、Applications

。Used in all kinds of general optical;

。Use in pigtails and patch cords;

。Used in connectors in optical communication equipment rooms and optical distribution frames;

。Used as optical apparatus connectors.

。Use as high density optical wiring connection

3、Features

。Good mechanical and environmental characteristics;

。soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;

。flame retardant characteristics and the meet the requirements of relevant standards;

。meet various requirements market and clients.

4、Cable   Parameters

                the corresponding dimension of the whole fiber optic cable(table 1)

Fiber

Count

Cable type

Cable Diameter

(mm)

Sub-cable

OD (mm)

Stainless steel tube diameter

(mm)

36

10.5GJFJKV-36S

Φ10.5±0.2

Φ3.0±0.1

Φ1.8

48

10.5GJFJKV-48S

Φ10.5±0.2

Φ3.0±0.1

Φ1.8

72

10.5GJFJKV-72S

Φ10.5±0.2

Φ3.0±0.1

Φ1.8

96

13.5GJFJKV-96S

Φ13.5±0.3

Φ3.0±0.1

Φ1.8

144

14.5GJFJKV-144S

Φ14.5±0.3

Φ3.0±0.1

Φ1.8

                    the corresponding dimension of the whole fiber optic cable(table 2)

Cable type

Cable

Diameter

(mm)

Cable

weight

KG/KM

Tensile N

Bend radius

(mm)*

Crush

N/100mm

Short

time

Long

time

dynamic

static

10.5GJFJKV-36S

Φ10.5±0.2

99.5

1500

800

200

105

3000

10.5GJFJKV-48S

Φ10.5±0.2

103.8

1500

800

200

105

3000

10.5GJFJKV-72S

Φ10.5±0.2

112.5

1500

800

200

105

3000

13.5GJFJKV-96S

Φ13.5±0.3

169

1800

900

270

135

3000

14.5GJFJKV-144S

Φ14.5±0.3

204

1500

800

290

145

3000

。all the values in the table 2 , which are for reference only .

5、Options

。Type of fiber :Single-mode fiber   G652、G657、G655,Multimode fiber 50/125、62.5/125、OM3,

。Material of jacket :PVC、LSZH、TPU、ETFE or other contracted material

。color of jacket:G652—bule、G657—grey、G655—green、Multimode products —orange(or grey),or other contracted color

。Stainless steel tube:SUS304、SUS204,or other contracted material

。other requirements :Other contracted individual requirements
