Mini single tube bundle armored cable
Mini single tube bundle armored cable
- Detail
- Parameters
Mini simplex round bundlearmored cable

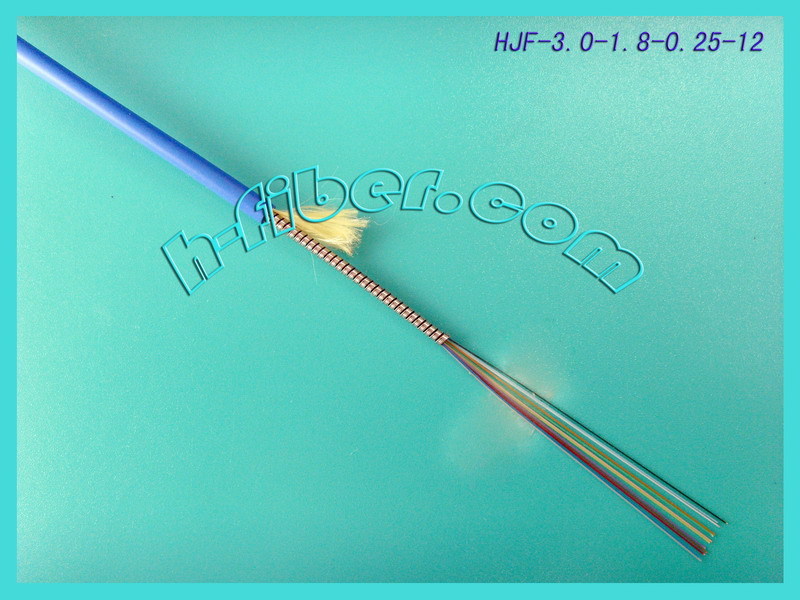

1、Profile View(for example of 12F）
（cross-section）
（stereoscopic）
2、Applications
。Used in all kinds of general optical;
。Use in pigtails and patch cords;
。Used in connectors in optical communication equipment rooms and optical distribution frames;
。Used as optical apparatus connectors.
3、Features
。Good mechanical and environmental characteristics;
。soft, flexible, solid, easy to splice ，It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
。flame retardant characteristics and the meet the requirements of relevant standards;
。meet various requirements market and clients.
4、Cable Parameters
the corresponding dimension of the whole fiber optic cable（table 1）
Fiber Count | Cable type | Cable Diameter (mm) | SUS tube diameter (mm) | Fiber diameter (mm) |
12 | 3.0GJFJKV-12S | Φ3.0±0.2 | Φ2.0±0.05 | Φ0.25 |
12 | 3.5GJFJKV-12S | Φ3.5±0.2 | Φ2.2±0.05 | Φ0.25 |
12 | 4.2GJFJKV-12S | Φ4.2±0.2 | Φ2.2±0.05 | Φ0.25 |
24 | 5.0GJFJKV-24S | Φ5.0±0.2 | Φ2.8±0.05 | Φ0.25 |
the corresponding dimension of the whole fiber optic cable（table 2）
Cable type | Cable Diameter (mm) | Cable weight KG/KM | Tensile N | Bend radius (mm)* | Crush N/100mm | ||
Short time | Long time | dynamic | static | ||||
3.0GJFJKV-12S | Φ3.0±0.1 | 12 | 400 | 200 | 60 | 30 | 3500 |
3.5GJFJKV-12S | Φ3.5±0.2 | 16 | 800 | 400 | 70 | 35 | 3000 |
4.2GJFJKV-12S | Φ4.2±0.2 | 19 | 1000 | 500 | 90 | 45 | 3000 |
5.0GJFJKV-24S | Φ5.0±0.2 | 25 | 1000 | 500 | 120 | 60 | 3000 |
。all the values in the table 2 , which are for reference only .
5、Options
。Type of fiber ：Single-mode fiber G652、G657、G655，Multimode fiber 50/125、62.5/125、OM3，
。Material of jacket ：PVC、LSZH、TPU、ETFE or other contracted material
。color of jacket：G652—bule、G657—grey、G655—green、Multimode products —orange（or grey），or other contracted color
。Stainless steel tube：SUS304、SUS204，or other contracted material
。other requirements ：Other contracted individual requirements
