Flat duplex armoured cable
1、Profile view
（cross-section）

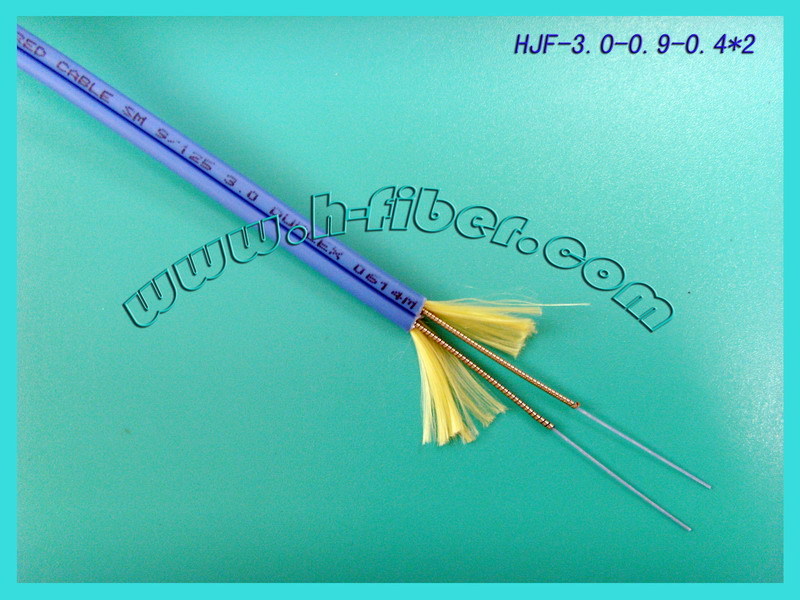

（stereoscopic）
2、Applications
。Used in all kinds of general optical;
。Use in pigtails and patch cords;
。Used in connectors in optical communication equipment rooms and optical distribution frames;
。Used as optical apparatus connectors.
3、Features
。Good mechanical and environmental characteristics;
。soft, flexible, solid, easy to splice;It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
。flame retardant characteristics and the meet the requirements of relevant standards;
。meet various requirements market and clients.
4、cable parameters
the corresponding dimension of the whole fiber optic cable（table 1）
Cable type | Cable Diameter (mm) | SUS tube diameter (mm) | Tight-buffered fiber diameter (mm) |
1.8GJFKJBV-2S | Φ1.8±0.1 | Φ0.9±0.05 | Φ0.5 |
2.0GJFKJBV-2S | Φ2.0±0.1 | Φ0.9±0.05 | Φ0.5 |
2.4GJFKJBV-2S | Φ2.4±0.1 | Φ0.9±0.05 | Φ0.5 |
2.8GJFKJBV-2S | Φ2.8±0.1 | Φ1.4±0.05 | Φ0.9 |
3.0GJFKJBV-2S | Φ3.0±0.1 | Φ1.4±0.05 | Φ0.9 |
the corresponding dimension of the whole fiber optic cable（table 2）
Cable type | Cable Diameter (mm) | Cable weight KG/KM | Tensile N | Bend radius (mm)* | Crush N/100mm | ||
Short time | Long time | dynamic | static | ||||
1.8GJFKJBV-2S | Φ1.8±0.1 | 9.6 | 160 | 80 | 50 | 30 | 5000 |
2.0GJFKJBV-2S | Φ2.0±0.1 | 13.0 | 200 | 100 | 50 | 30 | 5000 |
2.4GJFKJBV-2S | Φ2.4±0.1 | 14.0 | 250 | 130 | 50 | 30 | 5000 |
2.8GJFKJBV-2S | Φ2.8±0.1 | 21.0 | 500 | 250 | 60 | 30 | 3500 |
3.0GJFKJBV-2S | Φ3.0±0.1 | 22.0 | 600 | 300 | 60 | 30 | 3500 |
。all the values in the table 2 , which are for reference only .
。Using fiber of G657 series , the bending radius will be less than 15mm
5、Options
。Type of fiber ：Single-mode fiber G652、G657、G655，Multimode fiber 50/125、62.5/125、OM3，
。Material of jacket ：PVC、LSZH、TPU、ETFE or other contracted material
。color of jacket：G652—bule、G657—grey、G655—green、Multimode products —orange（or grey），or other contracted color
。Stainless steel tube：SUS304、SUS204，or other contracted material
。other requirements ：Other contracted individual requirements
